1 前言

ggplot2可以画出许多漂亮的图形。上一篇blog中，我们探讨了适合学术绘图的配色方案，主要用到了RColorRbrewer和ggsci两个扩展包。今天我们继续学术绘图的探索，主要通过案例的形式，实现以下两方面目的：

尝试使用ggplot2复现一些学术期刊、新闻报刊中看到的漂亮的数据可视化试图。
总结自己在科研过程中使用ggplot2的绘图技巧。

2 环境设定

library(tidyverse)
library(tibble)
library(data.table)
library(RColorBrewer)
library(ggsci)

# 自定义函数
# 1. 建立函数将R environment中的data.frame转为字符串，用于在文档中保存短小的数据（如案例5数据，注意数据量大时会报错）
texttable <- function(data) {
  # 表格转文字格式的函数
  col.n <- ncol(data)
  col.name <- names(data)
  res <- "data <- data.frame("
  for (i in 1:col.n) {
    val <- data[[i]]
    if (is.character(val)) {
      tres <- paste0(col.name[i], " = c('", paste0(val, collapse = "', '"), "'), ")
    } else {
      tres <- paste0(col.name[i], " = c(", paste0(val, collapse = ", "), "), ")
    }
    res <- paste(res, tres)
  }
  # res <- str_remove(res,", $") %>%  paste0(")")
  res <- gsub(", $", "", res)
  res <- paste0(res, ")")
  return(res)
}

3 显示数学符号和公式

ggplot2中，显示数学符号及公式的方法有两种：baser中的expression()函数和html语法的ggtext::element_markdown()函数:

expression()中任意字符如不能识别为符号，则以字符串形式（公式中的变量名）显示，例如expression(abscsdfwlapha3)直接会显示abscsdfwlapha3，可以有括号，但是要单独在首尾。
expression()或parse()函数（将字符串转为expression）中，数学符号和字符串之间必须有连接符，连接方法有*和paste（无空格连接）以及~（有空格连接）。例如以下三个结果相同：expression(''^210*Pb[ex])和expression(paste(''^210,Pb[ex]))和parse(text="''^210*Pb[ex]")。
注意有一些符号(如上下标)前必须要有字符，没有要加空字符，例如上面^{号前的’’；注意}后至*或~前所有字符都是上标，如果不确定，可以用^{210}指定上标部分，当然遇到特殊符号格式不对会报错。
geom_text中，使用expression类型的输入会报警告(无论是否有parse=T)，但仍可在图像上画出数学符号(ggplot2 v.3.4.2)。解决办法是，直接用字符型，然后设置parse=T（注意仅在geom_text中这么用），例如：建议用geom_text(label="''^210*Pb[ex]",parse=T)取代geom_text(label=expression(''^210*Pb[ex]))。
对于geom_text，如果有向量变量（如a）单独存储数学符号（expression或字符串），则只能在aes外指定label：geom_text(label=a,parse=T)；如果在画图数据中有一列（如dt$l）储存字符串格式的数学符号，则只能这样使用：geom_text(aes(label=l), parse = T)
在数据的一些位置不能使用expression，例如data.table的元素和列名都不支持，而虽然data.frame支持，但是在ggplot2分面标题中，也不能使用expression，此时可借助ggtext::element_markdown()，使用html语法实现分面标题的数学符号（如下面第二个图），注意这个方法，除了分面标题，其他位置不建议用，因为常不起作用。
关于expression在绘图中显示的符号，详细帮助见?plotmath。

point <- tibble(
  px = c(18, 20, 22, 24, 26, 28, 30, 32, 34, 36, 38, 40),
  py = c(4, 5, 12, 35, 84, 45, 47, 41, 22, 25, 3, 5)
)
fline <- tibble(
  lx = seq(15, 43, by = 0.02),
  ly = 60.5921 * exp(-((seq(15, 43, by = 0.02) - 28.0006) / 6.0670)^2)
)

x_labl <- c(
  expression(gamma), expression(delta), expression(epsilon),
  expression(zeta), expression(eta), expression(kappa), expression(lambda)
)
y_labl <- c(
  expression(Alpha), expression(Beta), expression(Gamma), expression(Delta),
  expression(Epsilon), expression(Zeta), expression(Eta), expression(Theta),
  expression(Iota), expression(Kappa)
)

ggplot() +
  geom_point(data = point, aes(x = px, y = py, shape = "sha"), color = "red", size = 2) +
  geom_line(data = fline, aes(x = lx, y = ly, color = "col"), linetype = 2) +
  # 定义图例及图形的标题及形状
  scale_color_manual(values = c("col" = "blue"), labels = expression(beta)) +
  scale_shape_manual(values = c("sha" = 15), labels = expression(alpha)) +
  guides(color = guide_legend(title = expression(r^2 == 111), order = 1)) +
  guides(shape = guide_legend(title = expression(r[2] == 222), order = 2)) +
  # 在图形中添加公式，注意label中~符号的使用和parse参数。
  geom_text(data = NULL, aes(36, 70), label = "Fit~line:~y == 61*e^{-(frac(x-28,6))}^2", parse = T) +
  geom_text(data = NULL, aes(36, 60), label = "r^2  == 0.7610", parse = T) +
  # 定义坐标轴及并以公式字符形式显示
  scale_x_continuous(breaks = seq(15, 45, by = 5), limits = c(15, 45), expand = c(0, 0), labels = x_labl) +
  scale_y_continuous(breaks = seq(0, 90, by = 10), limits = c(0, 90), expand = c(0, 0), labels = y_labl) +
  # 在标题中显示公式
  labs(
    title = expression(sqrt(a, b)),
    x = expression(bold(prod(plain(P)(X == x), x)) ~ (km^3)),
    y = expression(interscet(A[i], i == 1, n) ~ italic(H[2], CO[3] ~ mol %.% L^-1))
  ) +
  theme_bw() +
  theme(
    aspect.ratio = 1 / 1.5,
    panel.border = element_rect(linewidth = 1),
    panel.grid.major = element_blank(),
    panel.grid.minor = element_blank(),
    plot.title = element_text(hjust = 0.5)
  )

4 设置文本及字体

Caution

一个可行的ggplot2配置、显示字体流程：
- 在R中查看哪些字体可用：sysfonts::font.families()；
- 选择字体或使用sysfonts::font.add()用本地文件添加字体；
- 使用showtext::showtext_auto()在ggplot2中显示字体；
- 使用ggplot2画图并定义字体。
某些时候Rstudio的plot窗口不能显示字体，可在Tools - Global options - General - Graphics - Graphics Device - Backend修改参数，或者将图片保存本地后查看
在Rstudio中绘图显示不同字体，与Rmd和Rmd保存为html时，显示结果不一样。例如有时windows系统字体虽然sysfonts::font_families()不显示，但是在Rstudio也能调用，如Times New Roman，但是在Rmd html中则必须要载入、调用，否则提示没有该字体。如果在Rstudio中可以直接用，则不建议showtext::showtext_auto()，因为它会让文字变得非常小，要显著调大size才能正常显示，也因此建议画完图后就用showtext::showtext_auto(FALSE)关闭该功能。

library(showtextdb)
library(sysfonts)
library(showtext)

sysfonts::font_add("font1", regular = "D:/#R/learn_ggplot2/STXINGKA.TTF")
sysfonts::font_add("font2", regular = "D:/#R/learn_ggplot2/times.ttf")
sysfonts::font_add("font3", regular = "D:/#R/learn_ggplot2/STHUPO.TTF")

sysfonts::font_families() # 查看可以运行的字体

[1] "sans"         "serif"        "mono"         "wqy-microhei" "font1"
[6] "font2"        "font3"

showtext::showtext_auto() # 在ggplot2图中显示字体

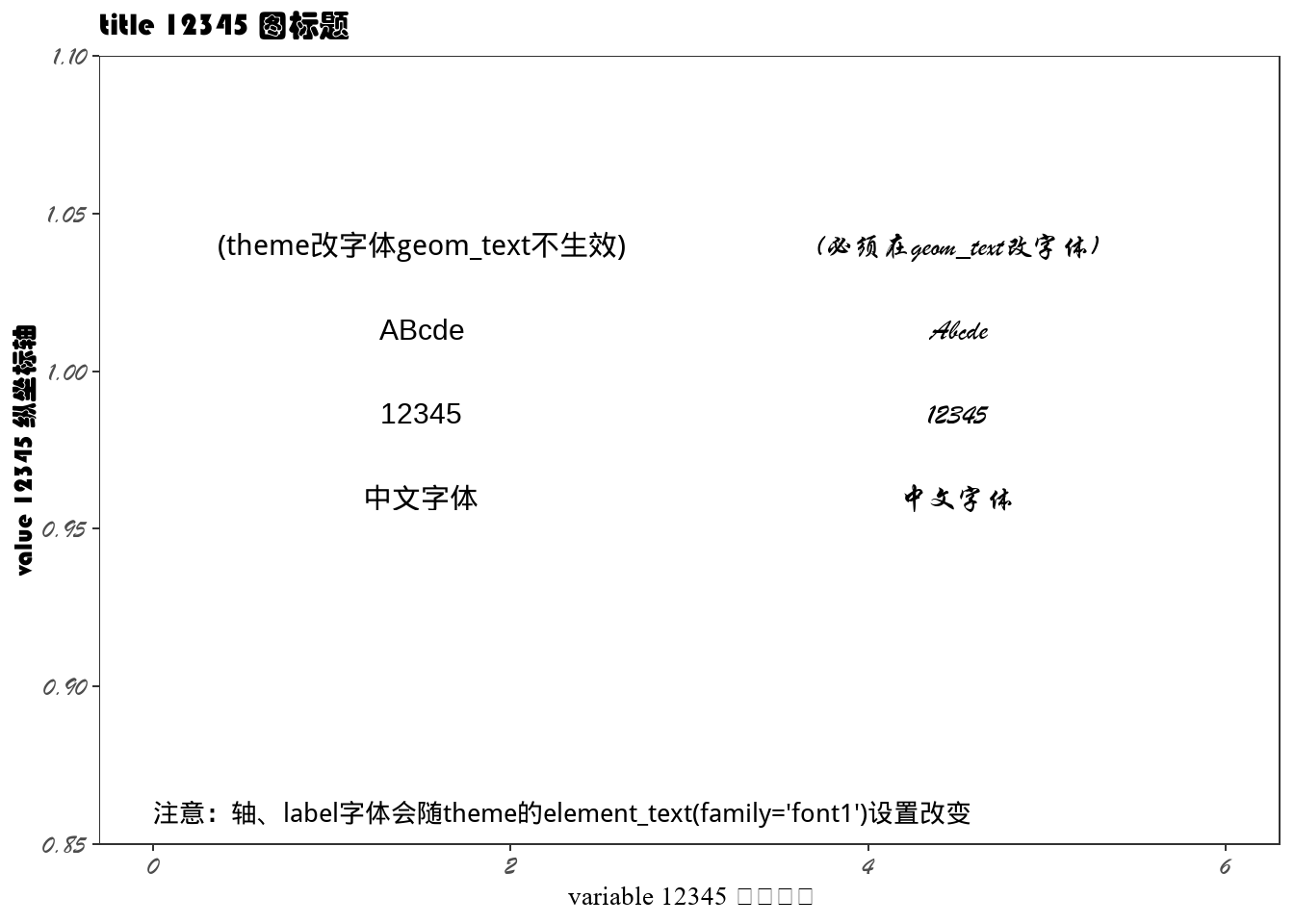

p <- ggplot() +
  geom_text(aes(1.5, 1), label = "(theme改字体geom_text不生效)\nABcde\n12345\n中文字体", size = 8) +
  geom_text(aes(4.5, 1), label = "(必须在geom_text改字体)\nAbcde\n12345\n中文字体", size = 8, family = "font1") +
  geom_text(aes(0, 0.86),
    label = "注意：轴、label字体会随theme的element_text(family='font1')设置改变",
    size = 7, hjust = 0
  ) +
  labs(x = "variable 12345 横坐标轴", y = "value 12345 纵坐标轴", title = "title 12345 图标题") +
  scale_x_continuous(limits = c(0, 6)) +
  scale_y_continuous(limits = c(0.85, 1.1), expand = c(0, 0)) +
  theme_bw() +
  theme(
    panel.grid = element_blank(),
    text = element_text(family = "font1"),
    axis.text = element_text(size = 20),
    axis.title.x = element_text(family = "font2", size = 20), # Times New Roman不显示中文
    axis.title.y = element_text(family = "font3", size = 20),
    title = element_text(family = "font3", size = 20)
  )
p

showtext_auto(FALSE) # 画完图关闭，打开时画图文字会变得非常小，只能把字号设置的额外大才正常

5 指示线

在作图过程中，我们通常需要加入一些指示线对图形进行进一步的说明。在ggplot2中，使用geom_text()和geom_segment()等函数连用实现。

# 生成作图数据
mydata <- tibble(
  response = c("Stringent complete response", "Complete response", "Very good partial response", "Partial response"),
  percentage = c(0.327, 0.067, 0.194, 0.042)
)

mydata$response <- factor(mydata$response,
  levels = c("Stringent complete response", "Complete response", "Very good partial response", "Partial response")
)

dat_col <- c("darkgreen", "darkolivegreen3", "steelblue4", "lightskyblue3")
dat_tex <- tibble(
  x = c(1, 0.55, 1.5),
  y = c(0.66, 0.43, 0.33),
  l = c("63.0 (104/165)", " ≥CR: \n39.4", " ≥VGPR: \n58.8")
)

dat_seg_left <- data.table(
  x = c(0.65, 0.69, 0.69, 0.69),
  xe = c(0.69, 0.73, 0.73, 0.69),
  y = c(0.43, 0.63, 0.236, 0.236),
  ye = c(0.43, 0.63, 0.236, 0.63)
)
dat_seg_righ <- data.table(
  x = c(1.31, 1.27, 1.27, 1.31),
  xe = c(1.35, 1.31, 1.31, 1.31),
  y = c(0.33, 0.63, 0.042, 0.042),
  ye = c(0.33, 0.63, 0.042, 0.63)
)

ggplot(mydata, aes(x = " ", y = percentage, fill = response)) +
  geom_bar(stat = "identity", width = 0.5, alpha = 0.9) +
  geom_text(aes(label = percentage * 100),
    position = position_stack(vjust = 0.5),
    size = 2.3, color = c("white", "white", "white", "black")
  ) +
  geom_text(data = dat_tex, aes(x, y, label = l, fill = NULL)) + # 无法继承的aes要定义为null
  geom_segment(data = dat_seg_left, aes(x = x, xend = xe, y = y, yend = ye, fill = NULL)) +
  geom_segment(data = dat_seg_righ, aes(x = x, xend = xe, y = y, yend = ye, fill = NULL)) +
  scale_fill_manual(values = dat_col) +
  scale_y_continuous(breaks = seq(0, 1, 0.1), label = seq(0, 100, 10), limits = c(0, 1), expand = c(0, 0)) +
  labs(x = "All Patients", y = "Percentage of Patients with Response", fill = "Response:") +
  coord_cartesian(clip = "off") +
  theme_classic() +
  theme(
    legend.position = "top",
    legend.text = element_text(size = 7),
    legend.title = element_text(size = 7, face = "bold"),
    legend.key.size = unit(3, "mm"),
    axis.title = element_text(size = 8, face = "bold"),
    axis.text = element_text(size = 8),
    axis.ticks.x = element_blank(),
    axis.ticks.length.y = unit(2, "mm"),
    plot.margin = unit(c(0.6, 5, 0.6, 5), "cm")
  )

6 误差棒、显著性

Caution

bar, errorbar和text的position参数设置要相同。
调整bar和errorbar的图层顺序，可以实现显示全部或半个errorbar。

library(ggsci)
dat <- tibble(
  layer = rep(c("A", "B"), 4),
  control = rep(c("ck", "slight", "moderate", "severe"), each = 2),
  sig = c("a", "a", "a", "a", "b", "b", "c", "c"),
  value = c(126.40, 78.47, 112.77, 70.57, 81.87, 55.53, 61.33, 46.83),
  sd = c(7.05, 7.94, 8.25, 4.55, 3.98, 3.94, 11.48, 5.14)
)
dat$control <- factor(dat$control, levels = c("ck", "slight", "moderate", "severe"))

ggplot(dat, aes(x = control, y = value, fill = layer)) +
  geom_bar(stat = "identity", position = position_dodge(0.9)) +
  geom_errorbar(aes(ymin = value - sd, ymax = value + sd), width = 0.2, position = position_dodge(0.9)) +
  geom_text(aes(y = value + 1.5 * sd, label = sig), vjust = 0, position = position_dodge(0.9)) +
  scale_fill_npg() + # ggsci配色方案
  scale_y_continuous(
    breaks = seq(0, 150, by = 25),
    limits = (c(0, 150)), expand = c(0, 0)
  )

7 案例1：全球气温变化图

dat <- tibble(
  Year = c(1959, 1960, 1961, 1962, 1963, 1964, 1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022), CO2 = c(315.98, 316.91, 317.64, 318.45, 318.99, 319.62, 320.04, 321.37, 322.18, 323.05, 324.62, 325.68, 326.32, 327.46, 329.68, 330.19, 331.13, 332.03, 333.84, 335.41, 336.84, 338.76, 340.12, 341.48, 343.15, 344.87, 346.35, 347.61, 349.31, 351.69, 353.2, 354.45, 355.7, 356.54, 357.21, 358.96, 360.97, 362.74, 363.88, 366.84, 368.54, 369.71, 371.32, 373.45, 375.98, 377.7, 379.98, 382.09, 384.02, 385.83, 387.64, 390.1, 391.85, 394.06, 396.74, 398.81, 401.01, 404.41, 406.76, 408.72, 411.66, 414.24, 416.45, 418.56),
  Value = c(0.07, 0.02, 0.06, 0.05, 0.08, -0.15, -0.07, -0.02, 0.01, -0.06, 0.09, 0.05, -0.05, 0.02, 0.2, -0.05, 0.01, -0.03, 0.21, 0.11, 0.22, 0.29, 0.35, 0.19, 0.34, 0.19, 0.16, 0.21, 0.34, 0.41, 0.31, 0.44, 0.42, 0.23, 0.27, 0.32, 0.48, 0.35, 0.5, 0.63, 0.42, 0.43, 0.55, 0.62, 0.63, 0.55, 0.7, 0.66, 0.66, 0.55, 0.66, 0.73, 0.63, 0.66, 0.68, 0.76, 0.91, 1.03, 0.94, 0.86, 0.97, 1.01, 0.86, 0.91)
) |>
  mutate(col = ifelse(Value > 0, "b", "r"))

ggplot(dat, aes(Year, Value)) +
  geom_bar(aes(fill = col), stat = "identity", color = "black", width = 0.7, linewidth = 0.1, show.legend = F) +
  geom_smooth(aes(linetype = "l"), color = "red", se = FALSE, method = "lm", formula = y ~ x) +
  scale_x_continuous(breaks = seq(1960, 2022, by = 5), limits = c(1958, 2023), expand = c(0, 0)) +
  scale_y_continuous(
    limits = c(-0.2, 1.2),
    breaks = seq(-0.20, 1.20, by = 0.2),
    expand = c(0, 0),
    labels = sprintf("%.2f\u00B0C", seq(-0.20, 1.20, by = 0.2)),
    # 副y轴，转换为华氏度
    sec.axis = sec_axis(
      trans = ~ . * 1.8, # 注意纵坐标为温度差值，所以只*1.8
      breaks = seq(-0.36, 2.16, by = 0.36),
      labels = sprintf("%.2f\u00B0F", seq(-0.36, 2.16, by = 0.36))
    )
  ) +
  scale_fill_manual(values = c("b" = "#4366AA", "r" = "#961A2B")) +
  scale_linetype_discrete(labels = c("l" = "1959 ~ 2022 Trend \n (+1.64℃/Centry)")) +
  guides(linetype = guide_legend(title = NULL)) +
  labs(
    x = NULL, y = NULL,
    title = "Global Land and Ocean",
    subtitle = "January-December Temperature Anomalies"
  ) +
  theme_bw() +
  theme(
    aspect.ratio = 0.5,
    axis.line = element_line(),
    panel.border = element_blank(),
    panel.grid = element_blank(),
    panel.grid.major.x = element_blank(),
    panel.grid.major = element_line(color = "gray97"),
    plot.title = element_text(face = "bold", size = 14, hjust = 0),
    plot.subtitle = element_text(size = 12, hjust = 0),
    legend.position = c(0.85, 1.09),
    legend.background = element_blank(),
    legend.text = element_text(size = 12)
  )

8 案例2：流域岩石风化碳汇强度

data <- tibble(
  Basin = c(
    "SiKiang", "Irrawaddi", "Amazon", "Mekong", "Yangtze-Kiang",
    "Ganges-Brahmaputra", "Magdalena", "Orinoco", "SevernaiaDvina",
    "St.Lawrence", "Fraser", "SaoFrancisco", "Danube", "Yenisei",
    "Tigris-Euphrates", "Mississippi", "Yukon", "Columbia",
    "Mackenzie", "Indus", "Zaire", "Godavari", "Ob", "Parana",
    "Lena", "Indigirka", "Don", "Amour", "Kolyma", "Yana",
    "Zambesi", "Nile", "Limpopo", "Niger", "Huangho", "Murray",
    "Orange", "Senegal", "Colorado"
  ),
  x = c(
    13.88, 10.88, 6.11, 5.72, 5.56, 5.17, 5.07, 2.86, 2.62,
    2.41, 2.25, 2.05, 1.64, 1.64, 1.58, 1.54, 1.48, 1.44, 1.38,
    1.29, 1.12, 1.02, 0.99, 0.86, 0.74, 0.7, 0.67, 0.66, 0.59,
    0.52, 0.41, 0.33, 0.31, 0.2, 0.18, 0.14, 0.13, 0.08, 0.08
  )
)

ggplot(data, aes(x = reorder(Basin, x), y = x)) +
  geom_bar(stat = "identity", fill = "steelblue", color = "white") +
  geom_text(aes(label = x), hjust = 0, vjust = 0.5, size = 2.5) +
  geom_segment(aes(x = 28.5, y = 0, xend = 28.5, yend = 7), color = "red", linewidth = 0.5) +
  geom_text(
    data = NULL, aes(x = 28.5, y = 7.5), label = "Average: 2.21",
    hjust = 0, vjust = 0.5, size = 3, color = "red"
  ) +
  scale_y_continuous(expand = expansion(mult = c(0, 0.08))) +
  labs(x = "Basins", y = expression(CO[2] ~ "Consumed(" ~ tc %.% km^-2 %.% yr^-1 ~ ")")) +
  coord_flip() +
  theme_light() +
  theme(
    axis.text = element_text(size = 6),
    axis.text.y = element_text(size = 7),
    axis.title = element_text(size = 10),
    panel.grid.minor = element_blank(),
    panel.grid.major.y = element_blank()
  )
